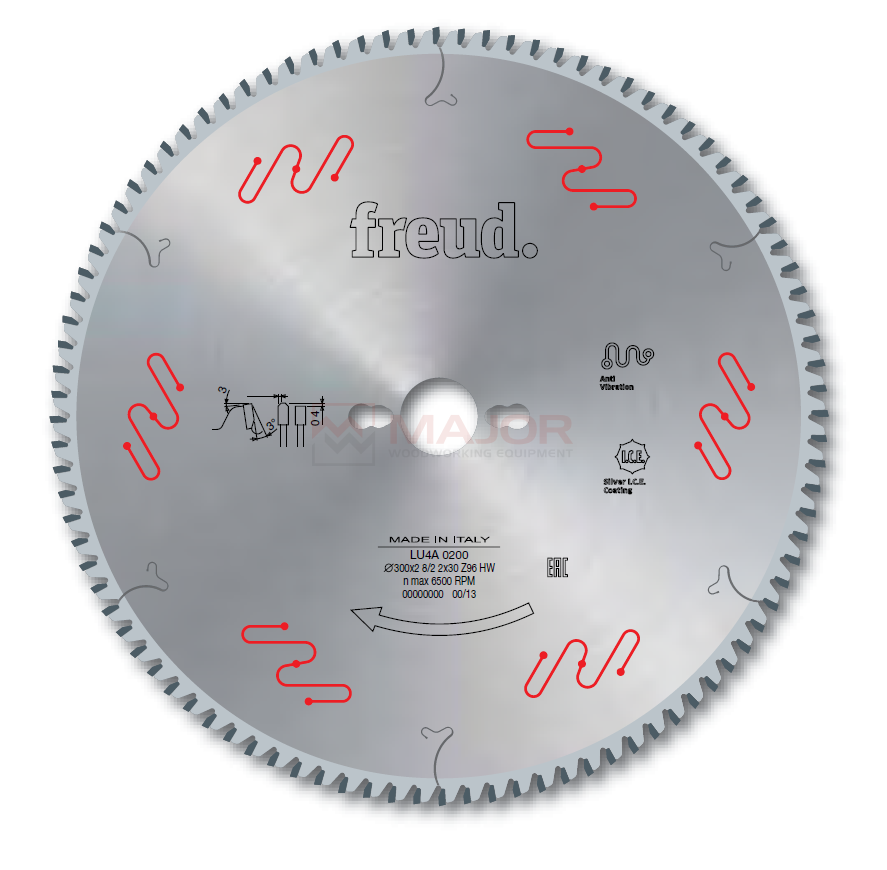

LU4A – Saw Blades To Cut Plastic Materials

$172.00 – $192.00

Blades with negative cutting angle that is suitable to cut plastic materials. In order to cut in a correct way, the saw blade has to stick out approximately 30mm over the material to be cut.

Machines

Circular saws, portable machines.

Features

Flat-triple chip tooth with negative cutting angle. The specific size of the teeth allows cutting with perfect finishing, without melting and scratching the material.

Material

Plastic materials, plexiglas.

Got a question?

Description

SKU	D	Bore	B (w)	b	Z
LU4A 0100	250	30	2.8	2.2	80
LU4A 0200	300	30	2.8	2.2	96

CUTTING SPECS

Tooth features

Minimum and maximum RPM based on the blade diameter.

SPECIAL FEATURES

Reduced Friction: Silver I.C.E. Coating

A high performing and anticorrosive coating to maintain the blade temperature low during the working process.
The non-stick feature improves chip ejection and notably reduces resin build-up, significantly re-ducing friction and extending the life time of the blade.

Section view of the antivibration slots.

Improved Precision: Anti-Vibration Slots for the Perfect Finishing

Body slots laser cut with freud innovative technology.
Also available with thermoplastic polyurethane filling, that considerably reduces vibration and minimizes noise.

Additional information

Weight	N/A
Code	LU4A 0100, LU4A 0200
