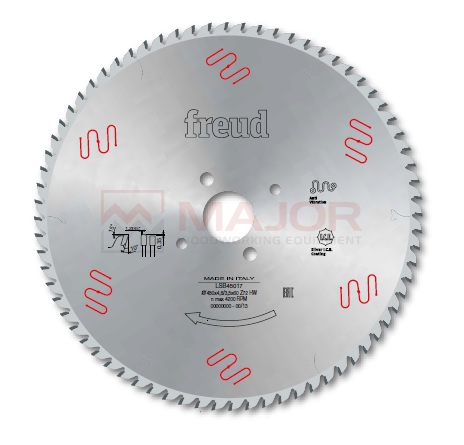

LSB – Saw blades to suit Beam Saws

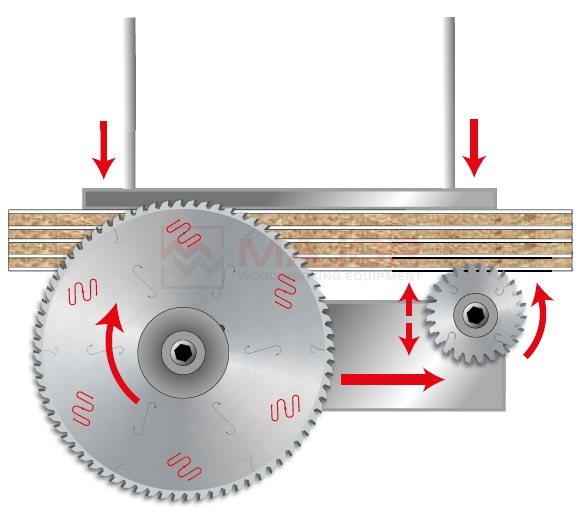

To size bilaminated panels with the employment of the scoring saw blade, in detail melamine-coated panels, with good finishing and long cutting life.

Machines

Beam saws.

Features

Flat-triple chip tooth with positive cutting angle.

Material

Bilaminated panels.

Got a question?

Description

SKU D Bore B (w) b Z
LSB35505 355 75 4.4 3.2 72
LSB35005 350 80 4.4 3.2 72
LSB35003 350 30 4.4 3.2 72
LSB30007 300 75 4.4 3.2 72
LSB30005 300 30 4.4 3.2 72
LSB30001 300 30 4.4 3.2 72
LSB36002 360 65 4.4 3.2 72
LSB40008 400 75 4.4 3.2 72
LSB40009 400 80 4.4 3.2 72



CUTTING SPECS

Tooth features

Tooth features

Maximum depth of cut based on the blade diameter.



SPECIAL FEATURES

Reduced Friction: Silver I.C.E. Coating
  • A high performing and anticorrosive coating to maintain the blade temperature low during the working process.
  • The non-stick feature improves chip ejection and notably reduces resin build-up, significantly re-ducing friction and extending the life time of the blade.

Section view of the antivibration slots.

Improved Precision: Anti-Vibration Slots for the Perfect Finishing
  • Body slots laser cut with freud innovative technology.
  • Also available with thermoplastic polyurethane filling, that considerably reduces vibration and minimizes noise.

Additional information

b

2.2, 2.5, 3.2
D

250, 300, 350, 400, 355, 360
Bore

30, 35, 75, 80, 65
B (w)

3.2, 3.5, 4.4
Z

80, 96, 108, 72
Cutting Application

Panel Cutting
Manufacturer

Freud
