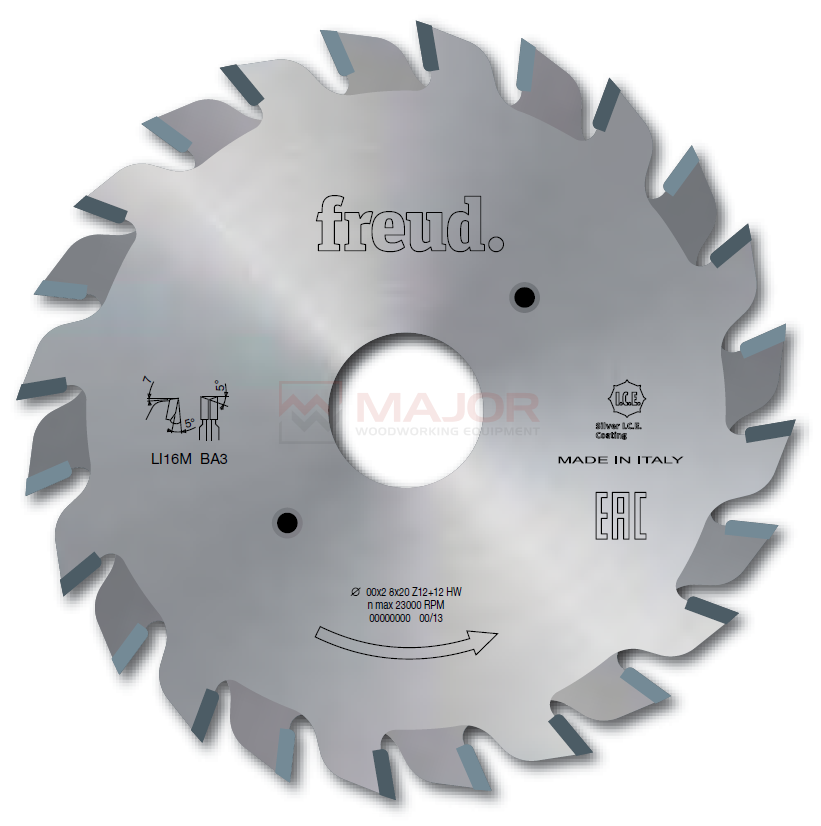

LI16M – Adjustable scoring saw blades

$170.50 – $220.00

To score the coating on bilaminated panels.

Horizontal panel sizing machines that do not allow the adjustment
of the scoring depth. Max scoring depth 2mm.

ATB tooth 5^o with positive cutting angle.

Bilaminated chipboard or MDF.

Got a question?

Description

SKU	D	Bore	B (w)	Z
LI16M GA3	80	20	2.8-3.6	12+12
LI16M BA3	100	20	2.8-3.6	12+12
LI16M BB3	100	20	2.8-3.6	12+12
LI16M CA3	105	20	2.8-3.6	10+10
LI16M AA3	120	20	2.8-3.6	12+12
LI16M AB3	120	22	2.8-3.6	12+12
LI16M EA3	125	20	2.8-3.6	14+14
LI16M EB3	125	22	2.8-3.6	14+14
LI16M DA3	125	20	4.0-4.7	20+20
LI16M PF3	120	50	2.8-3.6	12+12

A high performing and anticorrosive coating to maintain the blade temperature low during the working process.
The non-stick feature improves chip ejection and notably reduces resin build-up, significantly re-ducing friction and extending the life time of the blade.

Section view of the antivibration slots.

Body slots laser cut with freud innovative technology.
Also available with thermoplastic polyurethane filling, that considerably reduces vibration and minimizes noise.

Weight	N/A
Code	LI16M GA3, LI16M BA3, LI16M BB3, LI16M AA3, LI16M AB3, LI16M EA3, LI16M EB3, LI16M PF3
