Application

These new adjustable chamfer cutter heads carry out precise cuts, accurate bevels and joints on
wooden boards and solid timber. For use on spindle moulder machines, double-end tenoner and
shaper machines.

Technical Details

• Hard aluminium alloy body with high resistance to tensile and yield stress.

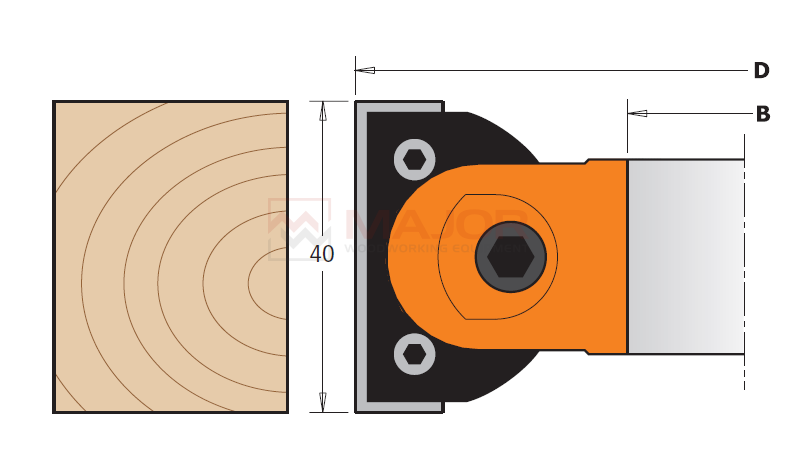

• 2 HWM Knives 40x12x1,5mm [Z2].
• Tools for manual feed (MAN).

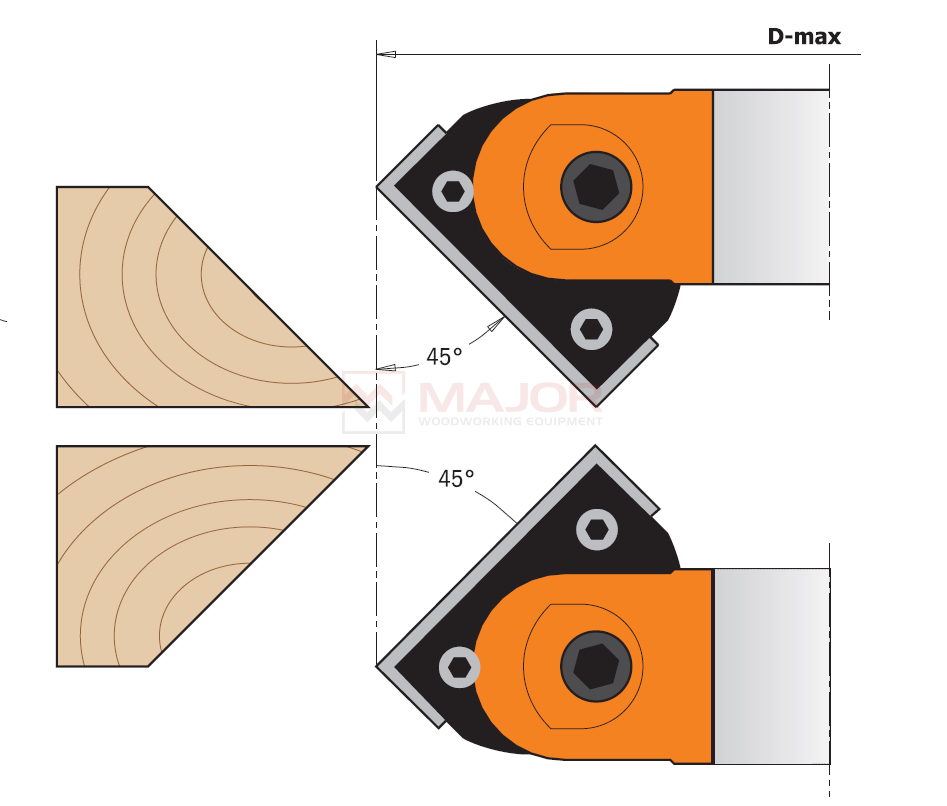

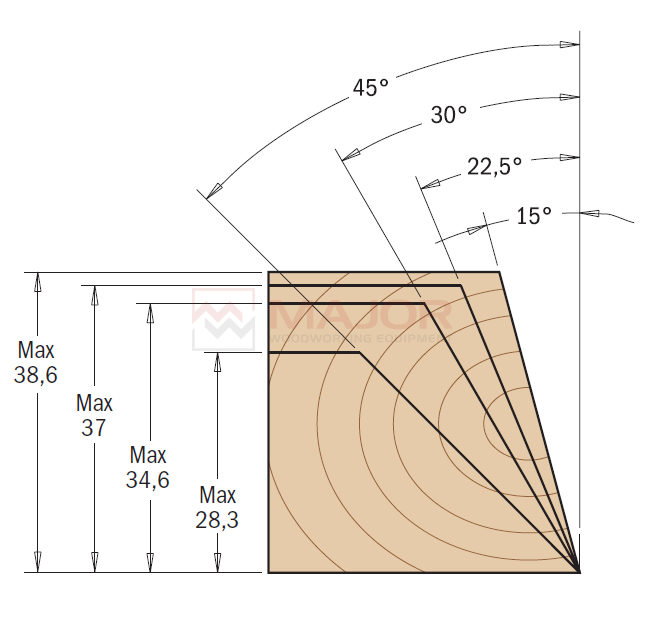

• Positive lock hold of HWM knives, swivel bodies infinitely adjustable on both sides from 0 to
  45°, with positive stop every 7.5 degrees thanks to the special built-in geared mechanism.

Supplied in a solid plastic box.
