309 4 Flute Dowel Drills Total Length = 70mm

309 4 Flute Dowel Drills Total Length = 70mm

$25.50 – $33.00

Application

Used on boring machines equipped with adaptors or chucks. Used to drill blind holes in solid wood, wood composites, plastic and laminated materials.

Technical Details
  • Super-strength steel.
  • Cutter portion coated with black or orange P.T.F.E.
  • HW head with precision balanced centre point.
  • 2 HW precision ground cutting edges (Z2).
  • 2 negatively ground spurs (V2).
  • 4 spiral flutes.
  • Parallel shank with driving flat and length adjusting screw.
Got a question?

Description

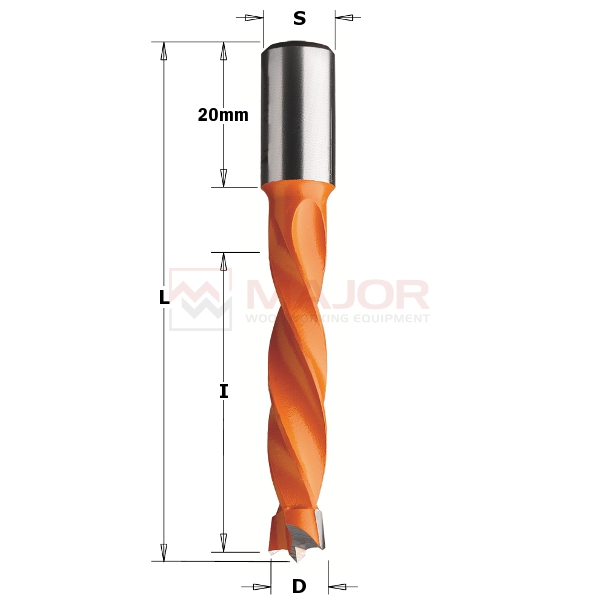

SKU D I L S Code RH Code LH
309.040.11 4 43 70 10×20 309.040.11 309.040.12
309.050.11 5 43 70 10×20 309.050.11 309.050.12
309.060.11 6 43 70 10×20 309.060.11 309.060.12
309.080.11 8 43 70 10×20 309.080.11 309.080.12
309.100.11 10 43 70 10×20 309.100.11 309.100.12
309.120.11 12 43 70 10×20 309.120.11 309.120.12
309.140.11 14 43 70 10×20 309.140.11 309.140.12
309.160.11 16 43 70 10×20 309.160.11 309.160.12

Additional information

Weight N/A
Item

309.050.11 5mm RH, 309.050.12 5mm LH, 309.080.11 8mm RH, 309.080.12 8mm LH, 309.100.11 10mm RH, 309.100.12 10mm LH
