$105.00 – $245.00
A special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tools run cooler and the edges last longer.
Used for cutting, copying, panel sizing and any routing applications on solid wood, wood composites, plastic materials and laminates. Use a high feed speed on well-clamped workpieces. Can be used on machining centres, point to point machines, CNC routers and hand-held routers equipped with chucks or adaptors.

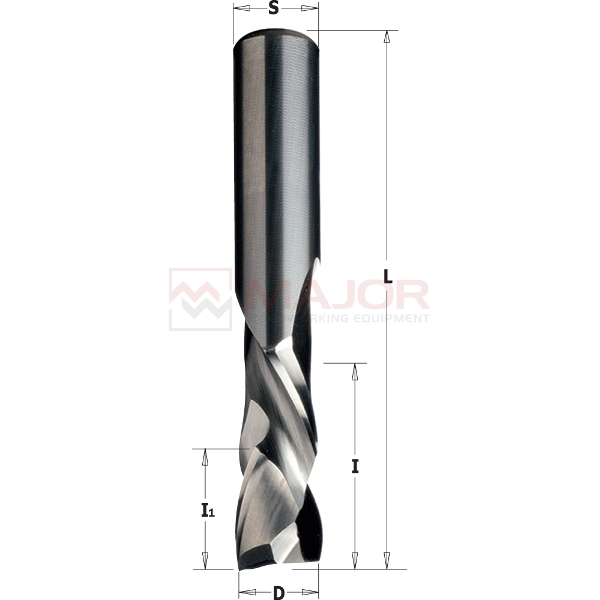

SKU | D | I | I1 | L | S | Z | Code RH |
---|---|---|---|---|---|---|---|
190 060 11 | 6 | 22 | 8 | 60 | 6 | 1+1 | 190 060 11 |
190 080 11 | 8 | 32 | 7 | 80 | 8 | 2+2 | 190 080 11 |
190 100 11 | 10 | 32 | 7 | 80 | 10 | 2+2 | 190 100 11 |
190 101 11 | 10 | 42 | 7 | 90 | 10 | 2+2 | 190 101 11 |
190 120 11 | 12 | 42 | 7 | 90 | 12 | 2+2 | 190 120 11 |
190 121 11 | 12 | 52 | 7 | 100 | 12 | 2+2 | 190 121 11 |
190 160 11 | 16 | 55 | 24 | 110 | 16 | 2+2 | 190 160 11 |
190 180 11 | 18 | 55 | 30 | 110 | 18 | 2+2 | 190 180 11 |
Weight | N/A |
---|---|
Code | 190.100.00, 190.120.00, 190.160.11 |
